16 Port Poe Switch 16CH Poe Ports With 2CH Uplink Ports 10/100/1000BaseT Auto Detect 250W EK-PS16CH-L1

Product Features:

PoE Power Connection|This standard network switch support 16*10/100/1000Base-TX RJ45 ports support PoE power supply, meet the requirement for PoE solution such as video surveillance, teleconference and wireless transmission system. All the ports support no blocking wire speed forwarding, more smooth transmission.

Priority Mechanism|This Layer 2 Poe Switch ports support a priority mechanism. When the remaining power is insufficient, the port with a higher priority is preferentially supplied to avoid overload. Without damaging the devices.

With Functional Switch|10000M Poe Switch supports 9-16 port transmission mode of 10M / 250metres long distance when started by one key.

Easy to Use|Users can easily learn about this managed switches operating status through the power indicator, port status indicator, and POE operating indicator, simple to operate.

Other Functions|Low power consumption, fanless silent design, metal housing, to ensure the stable running of products.

Send email to us

Product Detail

Product Tags

Product Details

Access Layer Poe Switch 16CH Poe Ports With 2CH Uplink Ports 10/100/1000BaseT Auto Detect 250W EC-KP07-16CH

PoE Ethernet switch is capable of sending power as well as data via Ethernet cables, hence eliminating the need for a separate power cable, to a PoE enabled device.

A single UTP cable provides power and enables data transfer,reducing installation time and associated costs.

16*10/100/1000Base-TX RJ45 ports support PoE power supply, meet the requirement for PoE solution. Ideal for IP based CCTV cameras, IP VoIP Phones, Wireless Access points and any other PoE compatible device. The maximum PoE output power of the whole system is 250W and single port is 30W.

Box Including:

1 x 16CH PoE Switches

1 x Power Cord

Product Parameter

Model No.	EK-PS16CH-L1
Port	16 port 10/100Base-TX POE (Data/Power)2 port 10/100/1000Base-T Uplink RJ45(Data)
POE Port	No.1-16 port support IEEE802.3af/at Standard POE Power Supply
Functional Key (Extender)	No.9-16 ports support long distance transmission 10M/250meter when turn on the functional key.NOTE: When the switch status changes, the POE MUST BE RESTARTED to take effect the function
Network Protocol	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX;IEEE802.3ab 1000Base-T; IEEE802.3x
POE Standard	IEEE802.3af/at International Standard
Port Features	10/100BaseT (X), 10/100/1000BaseT auto detect, MDI/MDI-X adaptive
Forwarding Model	Store and Forward
Backplane Bandwidth	14.8Gbps
Packet Forwarding Rate @64byte	5.36Mpps
MAC address tabel	16K
Packet Forwarding Cache	4M
Twist-Pair cable transmission	10BASE-TX: Cat5 or later UTP(≤250 meter)100BASE-TX: Cat5 or later UTP(≤100 meter)1000BASE-T: Cat5e or later UTP(≤100 meter)
Power supply pin	Default 1/2(+)，3/6(-); Optional to choose 4/5(+),7/8(-) ,4 core power supply
Max/average power single port	30W/15.4W
Total power/Input voltage	250W (AC100-240V)
Power Consumption	Standby power consumption : ＜15WFull power consumption: ＜240W
LED Indicator	Power: PWR(Green); Network: Link(Yellow); POE: POE(Green)
Power Source	Built in Power, AC: 100-240V 50-60Hz 4.1A
Operating Temp/Hum	-20~+55℃; 5%~90% RH Non condensing
Storage Temp/Hum	-40~+75℃; 5%~95% RH Non condensing

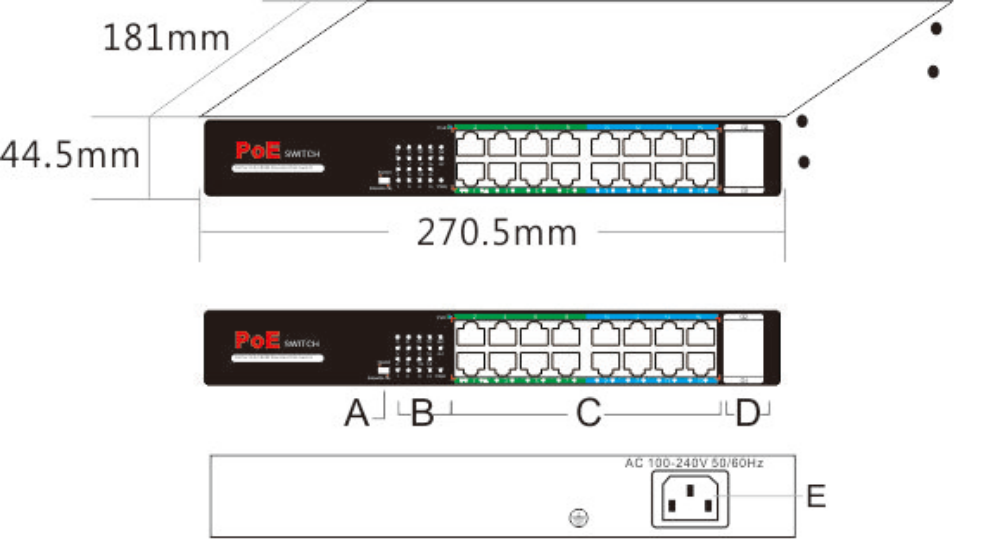

Product Size (LWH)	27018144.5mm
Net/Gross Weight	＜1.7kg / ＜2.2kg
Installation	Desktop, wall mounted and rack mounted
Lighting Protection Level	4KV 8/20us; IP30
Certificate	3C;CE mark,commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS;
Warranty	POE 1 year, Power 2 year, Lifetime maintenance
