24 Port POE Switch Standard 100Mbps 24+2 RJ45 14.8 Gbps Bandwidth 250W EK-PS24CH-L1

*Support 24*10/100M FE(RJ45) ports + 2*10/100/1000M (RJ45 port), more flexible networking to meet the need of various scenarios.

*All the ports support no blocking wire speed forwarding, more smooth transmission

*Support IEEE 802.3x Full-duplex Data Flow Transmission and Backpressure Half-duplex Data Flow Transmission

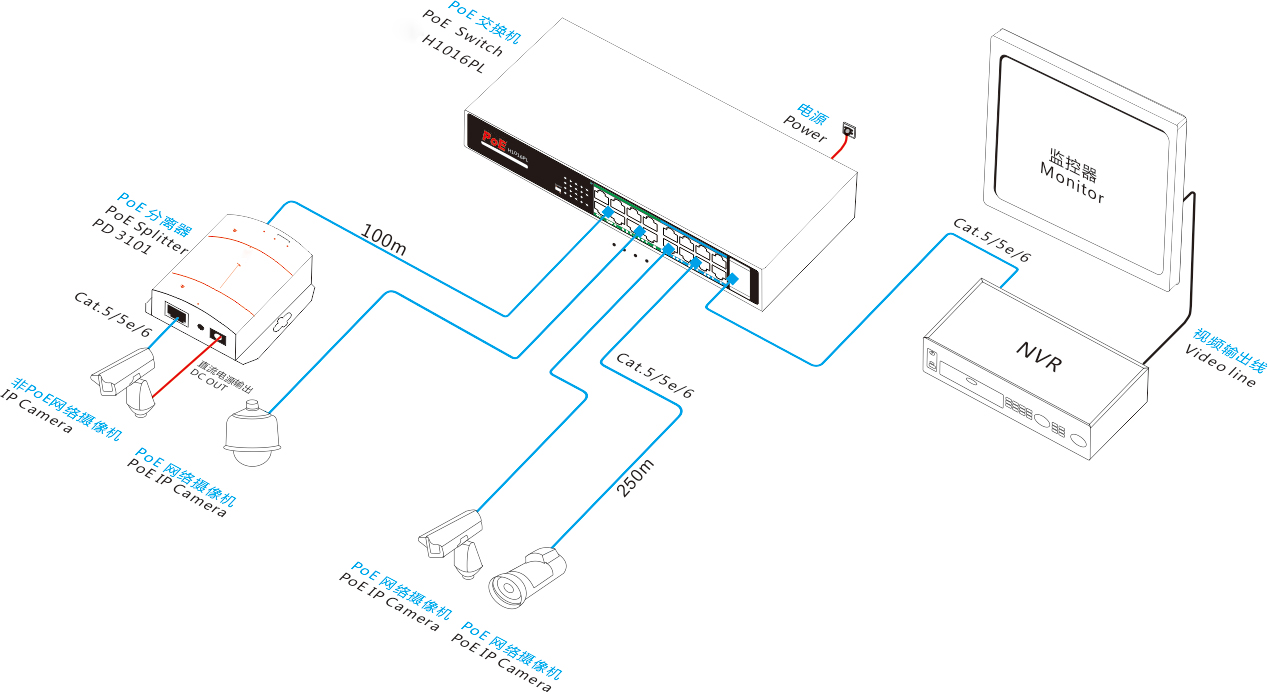

*24*10/100/1000Base-TX RJ45 ports support PoE power supply, meet the requirement for PoE solution such as video surveillance, teleconference and wireless transmission system.

*Complies with IEEE 802.3AF/AT PoE power supply standards. Automatically identifies PoE devices and supplies power without damaging non-POE devices. The maximum PoE output power of the whole system is 250W and single port is 30W.

*PoE ports support a priority mechanism. When the remaining power is insufficient, the port with a higher priority is preferentially supplied to avoid overload.

*Plug and play, no configuration, simple and convenient.

*With functional switch, support 17-24 port transmission mode of 10M/ 250metres long distance when started by one key.

*Users can easily learn about the device operating status through the Power indicator, port status indicator, and POE operating indicator.

*Support installation of desktop and 1U-19 inch cabinets.

*Low power consumption, fanless silent design, metal housing, to ensure the stable running of products.

*The self-developed power supply with high redundancy design provides long-term and stable PoE power output.

*The device meets China CCC standard, fully conforms to the CE, FCC, RoHS safety requirements, safe and reliable use.
