Standard PoE Switch PoE 8+2 Ports 10/100Base-TX RJ45 IEEE802.3af/at 100W EK-PS8CH-L1

Product Features:

8+2 PORTS AVAILABLE|This network switch support 10*10/100Base-TX ports, 8 port 10/100Base-TX POE (Data/Power)
2 port 10/100Base-T Uplink RJ45(Data). It more flexible networking to meet the need of various scenarios.

IEEE802.3af/at International Standard|This poe network switch complies with IEEE 802.3AF/AT PoE power supply standards. Automatically identifies PoE devices and supplies power without damaging non-POE devices. This Poe Network Switch easy to install.

PoE Output Power Supply|The 100M poe switch maximum PoE output power of the whole system is 100W and single port is 30W. Suitable power AC100-240V.

Low Power Consumption| This poe switch is low power mode, can save more power for you.

Plug and Play| easy to use, simple and convenience.


Product Detail

Product Tags

Product Details

10 Port PoE Switch 8+2 Ports Switches 10/100Base-TX RJ45 IEEE802.3af/at 100W EK-PS8CH-L1

The EC-KP07-CH is a 10/100Mbps unmanaged PoE switch, it has 8*10/100M PoE ports and 2*10/100M uplink RJ45 ports, Port 1-8 can support IEEE 802.3af/at standard PoE power supply, single port PoE power up to 30W, and the maximum POE output power is 100W.

Package Including:

1 x 8CH PoE Switch

1 x Power Cord

Product Parameter

 Model No. EK-PS8CH-L1
Port 8 port 10/100Base-TX POE (Data/Power)2 port 10/100Base-T Uplink RJ45(Data)
POE Port No.1-8 port support IEEE802.3af/at Standard POE Power Supply
Functional Key (Extender) 1pcs (Extender+CCTV)NOTE: When the switch status changes, the POE MUST BE RESTARTED to take effect the function
Network Protocol IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u 100Base-TX;

IEEE802.3x

POE Standard IEEE802.3af/at International Standard
Port Features 1-10 ports 10/100BaseT (X) auto detect, MDI/MDI-X adaptive
Forwarding Model Store and Forward
Backplane Bandwidth 2Gbps
Packet Forwarding Rate @64byte 1.488Mpps
MAC address tabel 2K
Packet Forwarding Cache 1.25M
Twist-Pair cable transmission 10BASE-T: Cat3,4,5 UTP(≤250 meter)100BASE-TX: Cat5 or later UTP(≤100 meter)
Power supply pin Default 1/2(+),3/6(-); Optional to choose 4/5(+),7/8(-) ,4 core power supply
Max/average power single port 30W/15.4W
Total power/Input voltage 100W (AC100-240V)
Power Consumption Standby power consumption : <5WFull power consumption: <100W
LED Indicator Power: PWR(Green); Network: Link(Yellow); POE: POE(Green); Functional Switch: EXTEND(Green)
Power Source Built in Power, AC: 100-240V 50-60Hz 2.2A
Operating Temp/Hum -20~+55℃; 5%~90% RH Non condensing
Storage Temp/Hum -40~+75℃; 5%~95% RH Non condensing
Product Size (L*W*H) 195*130*40mm
Net/Gross Weight <0.8kg / <1.2kg
Installation Desktop, wall mounted
Lighting Protection Level 4KV 8/20us; IP30
Certificate 3C;CE mark,commercial; CE/LVD EN60950;
FCC Part 15 Class B; RoHS;
Warranty POE 1 year, Power 2 year, Lifetime maintenance

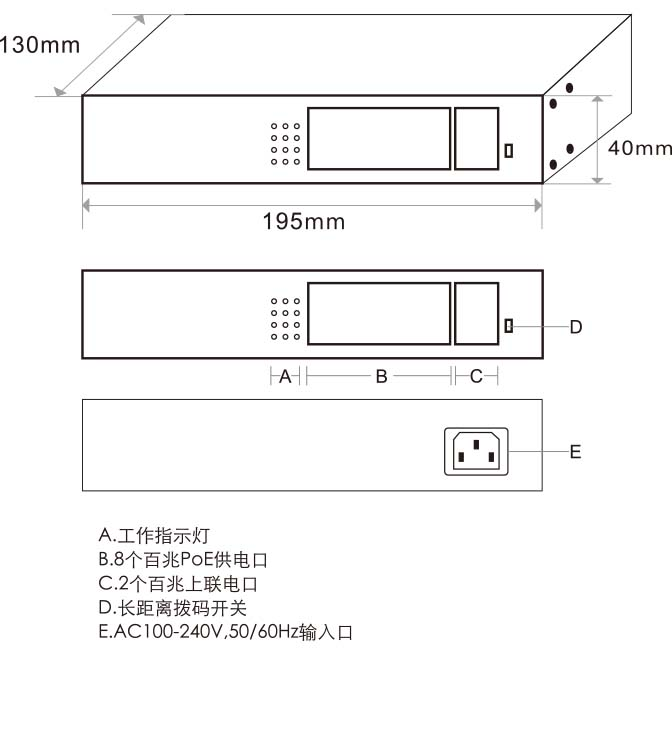

Product Size

A: Working indicator

B: 8 Port POE Power Supply

C: 2 Port 10/100M uplink RJ45

D: Long Distance Switch

E: AC100-240V, 50/60Hz
